18Gbps HDMI Matrix Switcher

Name: 18Gbps HDMI Matrix Switcher
Brand: VINCAN
Price: 1 USD

Brand Name : VINCAN

Model Number : WL-0202H

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package

HDMI Video Resolution : Up to 4K2K@50/60Hz YCbCr 4:4:4

Input ports : 2×HDMI Type A [19-pin female] 1×IR Receiver Window

Output ports : 2×HDMI Type A [19-pin female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical jack]

Color : Black

Warranty time : 12 months

Casing material : Metal

Contact Now

18Gbps HDMI Matrix Switcher

18Gbps HDCP , 2.2 2 input 2 output HDMI Matrix Switcher with 4K2K@50/60Hz (4:4:4)

1. Introduction

The 18Gbps 2x2 HDMI Matrix switcher supports the transmission of video

signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two

HDMI displays simultaneously.

2. Features

1. Support analog audio PCM 2.0.
2. Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1,
Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1,
DTS HD-HRA 5.1.
3. Support HDR function
4. Flexible control via panel buttons and IR remote.

3.Specification :

Technical
HDCP Compliance	HDCP 2.2 and HDCP 1.x
DVI Compliance	DVI 1.0
Video Bandwidth	594MHz / 18Gbps
HDMI Video Resolution	Up to 4K2K@50/60Hz YCbCr 4:4:4
High Dynamic Range	HDR,HDR 10+,HLD,DOLBY VISION
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
L/R Audio Formats	Analog stereo PCM 2.0
Optical Audio Formats	LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection	Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input ports	2×HDMI Type A [19-pin female] 1×IR Receiver Window
Output ports	2×HDMI Type A [19-pin female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical jack]

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	144mm (W)×59.5mm (D)×18mm (H)
Weight	208g
Power Supply	Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	2.7W
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

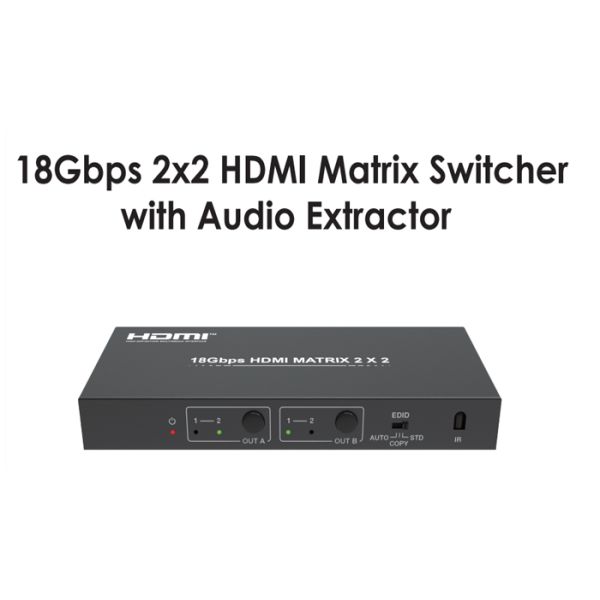

5. Products' picture :

18Gbps HDMI Matrix Switcher
